Install bearing bracket

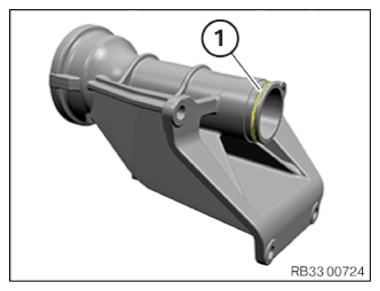

Check sealing ring (1), replace if necessary.
Parts: Sealing ring
Coat the sealing ring (1) with front axle differential oil.

Courtesy of BMW OF NORTH AMERICA, INC.

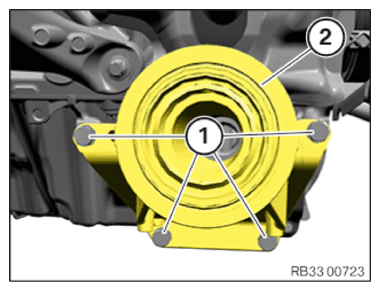

Position the bearing bracket (2) at the engine oil pan.
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Bearing bracket to engine oil pan.
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
