Attaching the front left wheel

Mounting the wheel

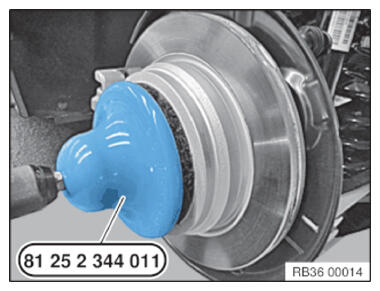

• Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011 .

  Do not operate special tool 2 344 011 with an impact screwdriver.

• Degrease the contact surfaces with the universal cleaner (see applicable BMW Group Parts catalog).
• In the event of grease residues in the area of the wheel bolt holes, remove and clean the brake disk.

  Courtesy of BMW OF NORTH AMERICA, INC.

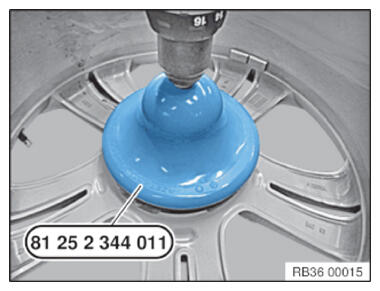

• Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011 .

  Do not operate special tool 2 344 011 with an impact screwdriver.

• Degrease the contact surfaces with the universal cleaner (see applicable BMW Group Parts catalog).

  Courtesy of BMW OF NORTH AMERICA, INC.

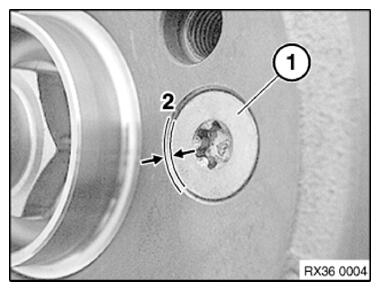

• Check if the mounting bolt (1) has been fitted correctly for the brake disk.

  The mounting bolt (1) for the brake disk cannot  protrude on the contact surface (2) between the brake disk and the rim.

Courtesy of BMW OF NORTH AMERICA, INC.

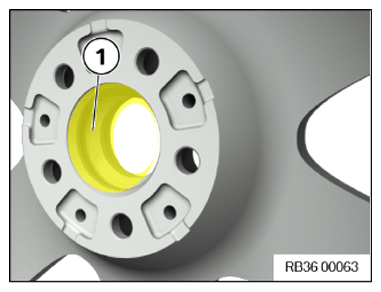

• Lightly grease the wheel centering (1) in the rim.
  CONSUMABLE SPECIFICATION



  Brake block paste  * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only.	3 g, Bag	83192158851
  100 g, Tube		83192158852
  5 g, TU*		83230140233

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Do not  grease wheel hubs and the wheel centering in G80, G81, G82, G83 and G87 models.

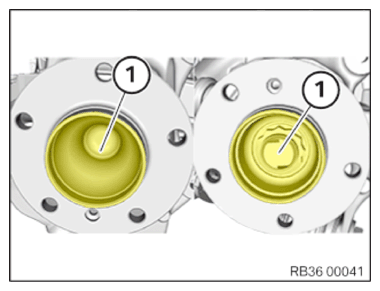

• Apply a thin layer of grease to the front and rear wheel hubs (1) to protect against corrosion.
  CONSUMABLE SPECIFICATION



  Brake block paste  * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only.	3 g, Bag	83192158851
  100 g, Tube		83192158852
  5 g, TU*		83230140233

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION

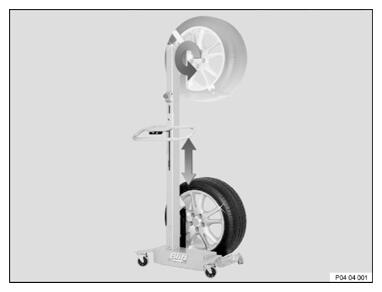

  A wheel lifter is recommended for easier wheel removal and installation without applying force (see applicable Dealer Equipment Catalog).
• In vehicles with M Carbon ceramic brake: The wheel lifter must be used to install the wheel. This process is intended to prevent damage to the brake disc.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Check lug bolts for wear.

Courtesy of BMW OF NORTH AMERICA, INC.

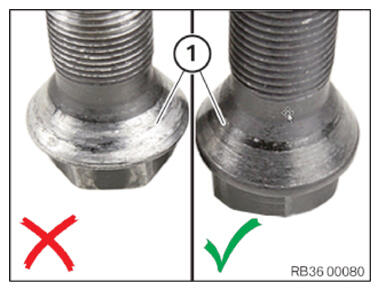

Result

» Spots (> 30%) of the bearing surface (1) of the taper on the screw head show silvery wear.

Measure

• Replace wheel bolts.
  NOTE: TECHNICAL INFORMATION
  Never use an impact screwdriver or electric screwdriver to apply and tighten the lug bolts.
  The rim must rest uniformly against the brake disk.
  In the case of non-original BMW lug bolts/wheel rims, it may be necessary to retighten the lug bolts on user account of setting properties (refer to the documentation from the manufacturer).
  Do not apply oil to new lug bolts.
  Recutting a damaged thread (wheel bolt/wheel hub) is not permissible!

  Courtesy of BMW OF NORTH AMERICA, INC.

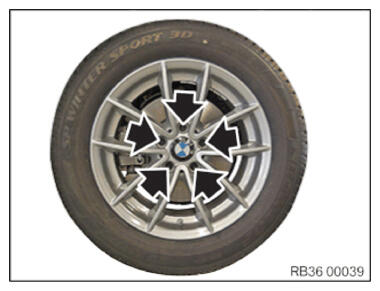

• Replace the corroded wheel bolts (arrows).
• Clean wheel bolts (arrows).
• Check lug bolts (arrows) and threads for damage, replace lug bolts (arrows) if necessary.
• Join and tighten the wheel bolts (arrows).
