Removing the reinforcement on the bumper cover

• Unlock plug connection (1) and disconnect.
• Release the wiring harness (2) at the holders (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

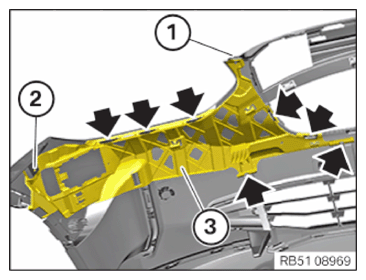

• Release expanding rivet (1).
• Loosen screw (2).
• Release and remove the reinforcement (3) at the detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
