Removing the luggage compartment lamp in the right luggage compartment
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing luggage compartment lamp in luggage compartment

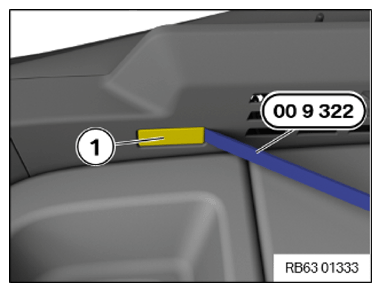

- Unclip the luggage compartment lamp in the luggage compartment (1) with the special tool 0 490 539 (00 9 322) .
- Unlock plug connection and disconnect.
- Removing the luggage compartment lamp in the luggage compartment.
