Removing the lid for the air inlet on the left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

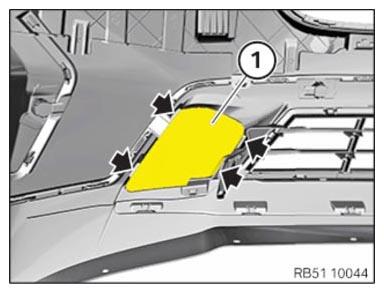

• Release the lid (1) at the detents (arrows) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
