Removing right C-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing C-pillar trim panel
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

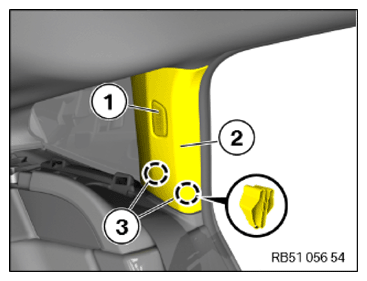

- Unclip the cover (1) and release the screw under that.
- Unclip the C-pillar trim panel (2) with the clamps (3).
- Feed out the C-pillar trim panel (2) under the sealing lip of the door weather strip and remove.
