Partly install the front wheel arch trim

Check

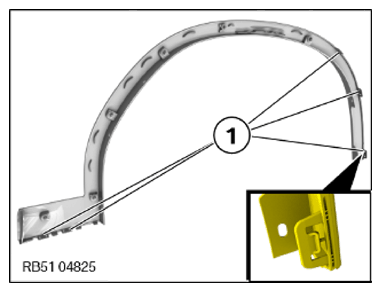

• Check detents (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detents (1) of the wheel arch trim are damaged.

Measure

• Replace wheel arch trim.

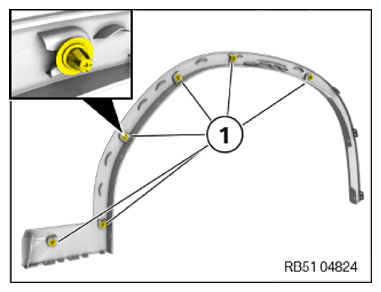

• Check the clips (1) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

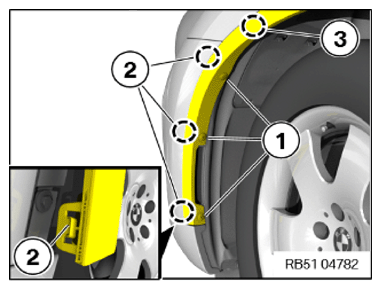

• Clip the wheel arch trim into the clip (3) the area of the bumper cover and into the detents (2).
• Mount blind rivet (1) using the special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.
