Installing the right C-pillar trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing C-pillar trim panel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

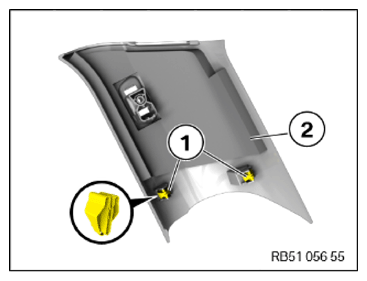

Check the clamps (1) on the C-pillar trim panel (2) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

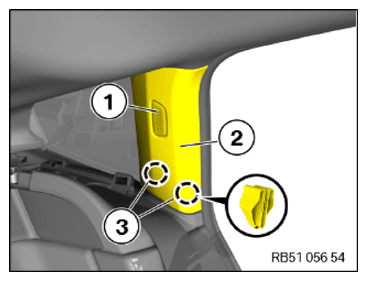

Position the C-pillar trim panel (2) insert it below the sealing lip of the door weather strip and clip it in with the clamps (3).
Tighten down screw.

TIGHTENING TORQUES SPECIFICATION

C-pillar trim panel to body
Sheet metal screw 8x38	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
