Install the cover for the luggage compartment on the right

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing cover for luggage compartment.

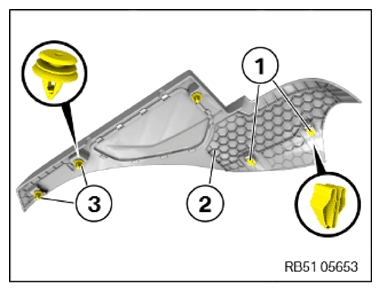

Check the clamps (1) on the cover for the luggage compartment (2) for damage and replace as needed.
Check the clips (3) on the cover for the luggage compartment (2) for damage and replace as needed.

Courtesy of BMW OF NORTH AMERICA, INC.

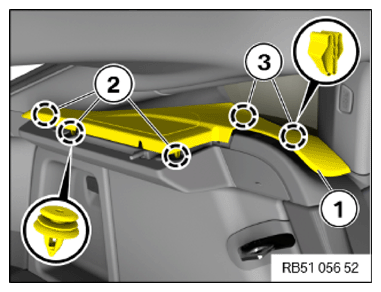

Fit the cover for the luggage compartment capping (1), press down and clip in with the clips (2) and clamps (3).

Courtesy of BMW OF NORTH AMERICA, INC.
