Prepare for the installation of the DSC control unit
NOTE:
TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness.
Maintain conditions of absolute cleanliness.
NOTE:
TECHNICAL INFORMATION
Do not clean the sealing surface with compressed air, chemical solvents or sharp-edged objects.
Do not tap or clean the pressure sensor contacts with your fingers.
Do not clean the sealing surface with compressed air, chemical solvents or sharp-edged objects.
Do not tap or clean the pressure sensor contacts with your fingers.

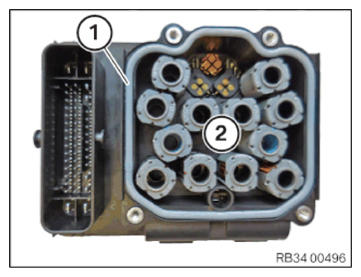

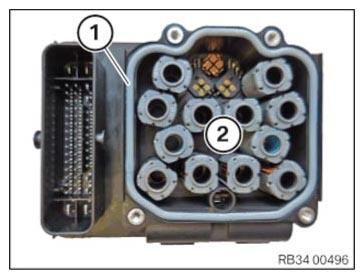

- Clean the sealing surface (1) if necessary, with plastic scraper or a lint-free cloth.
- Be careful not to damage the contacts (2).
- For the reuse of the hydraulic unit (valve block), a repair kit installation control unit is required.

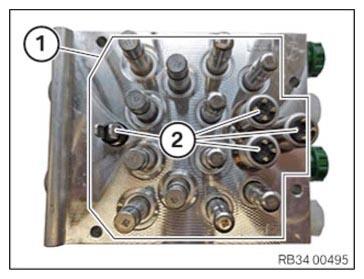

The repair kit contains a new silicone seal (1) and bolts.
- Make sure that the valve coils (2) are not damaged.
Do not clean, readjust or tap the valve coils with your fingers.
