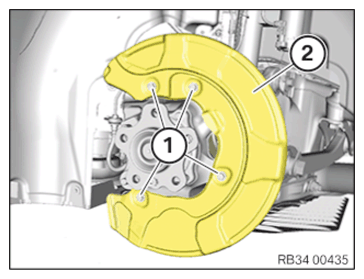

Mount rear brake guard plate

• Install brake guard plate (2).
• Replace screws (1).

  Parts  : Screws

• Insert screws (1) and tighten.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BRAKE DISC .
• Refer to GREASING THE BRAKE PADS, THE BRAKE ANCHOR PLATE AND THE BRAKE CALIPER WITH BRAKE PAD PASTE .
• Refer to INSTALLING REAR BRAKE PADS .
• Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
• Refer to START-UP OR BEDDING IN BREAK-IN OF NEW BRAKE PADS AND ROTORS (REAR BRAKE) .
