Installing starter motor
Installing the starter on vehicles with all-wheel drive
- Make sure that the acoustic cover (1) is not damaged.
- Carefully press the acoustic cover (1) to one side.
- Carefully feed in the starter motor (3) in the arrow direction and install it.
- Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Starter motor to crankcase | ||
| M8x60 | Tightening torque | 19 Nm |

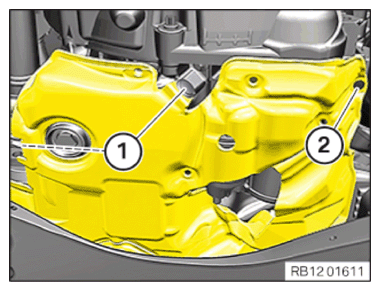

- Position acoustic cover.
- Mount expanding rivets (1) at rear on the acoustic cover.
- Replace (2) clip.
Parts: clip
- Mount the clip (2).

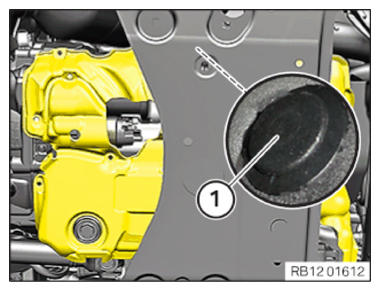

- Mount expanding rivet (1) in the center of the acoustic cover.
- Mount expanding rivets (1) in front on the acoustic cover.

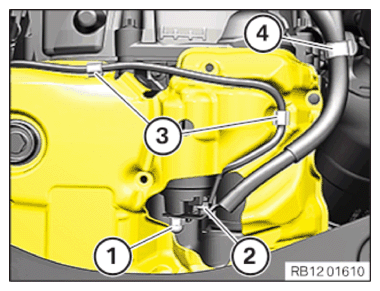

- Version 1:
- Connect the positive battery cable on the starter and secure it with the nut (1).
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Battery positive lead to starter | ||
| M8 | Tightening torque | 13.5 Nm |
- Connect cable (terminal 50) on the starter and fasten with the nut (2).
- Tighten nut (2).
TIGHTENING TORQUE SPECIFICATIONS
| Terminal 50 to starter motor | ||
| M6 | Tightening torque | 7.5 Nm |
- Fasten the cable (terminal 50) to the clamps (3).
- Secure positive battery cable at the clamp (4).
- Version 2:
- Connect connectors (2) and lock.
The connector (2) must engage audibly.
- Tighten the nut (1) hand-tight.
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
- Attach the positive battery cable (1) correctly to anti-twist lock (2).
- Tighten nut (3).
TIGHTENING TORQUE SPECIFICATIONS
| Starter motor to crankcase | ||
| M8x60 | Tightening torque | 19 Nm |
Follow-up work
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
