Topping up/checking front axle transmission oil

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

Preliminary work

Refer to REMOVING THE CENTER UNDERBODY PROTECTION .

NOTE: RISK OF DAMAGE
Damage to the front axle differential.
Failure to comply with the oil specifications can result in serious damage to the front axle differential.

Use only the approved front axle transmission oil.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Determine which version of front axle transmission is installed.

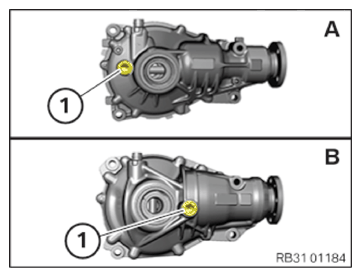

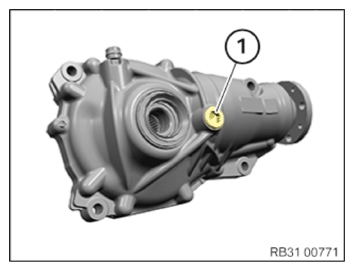

Version A:
The oil drain plug (1) is positioned in front of the output shaft.
Version B:
The oil drain plug (1) is positioned behind the output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity.
Use special tool 2 460 340 for topping up.

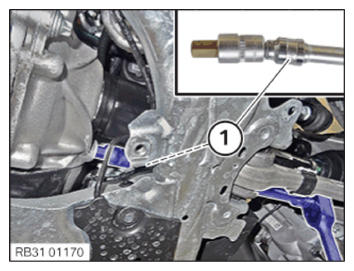

To top up a defined (measured) oil quantity, first fill hose (1) with oil. To do this, connect adapter (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Supplementing the oil level with the oil spray

NOTE: TECHNICAL INFORMATION
The training video schematically shows the method for changing the oil in the rear axle differential using the oil sprayer special tool.
The training video is not a replacement for the repair instructions.
The training video is not subject to the update service.
We can assume no liability for printing errors or inaccuracies in this Service information and reserve the right to introduce technical modifications at any time.
Follow repair instructions!
Version A: Drain and top up the front axle transmission oil

NOTE: TECHNICAL INFORMATION
Filling to the lower edge of the oil filler opening means that the front axle differential is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front axle differential.
After having drained the front axle transmission oil, repair the front axle differential or upon initial filling of a new replacement front axle differential, the transmission must be filled with 450 ml of oil.

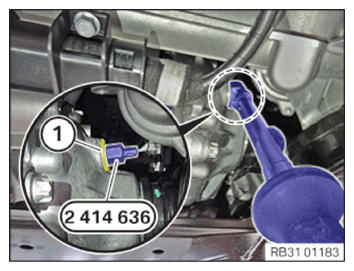

Use special tool 2 414 636 with special tool (1) to release and tighten the oil drain plug.

Courtesy of BMW OF NORTH AMERICA, INC.

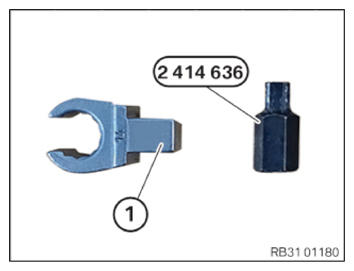

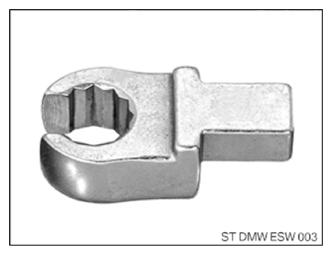

Standard tool: Open-ring insertion tool

Open-ring insertion tool

Courtesy of BMW OF NORTH AMERICA, INC.

Open-ring insertion tool

SW14
Place oil collecting apparatus underneath.

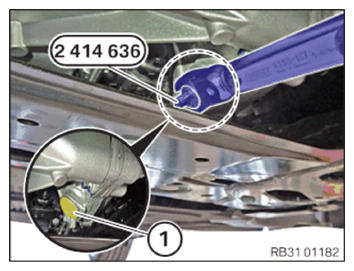

Release oil drain plug (1) with special tool 2 414 636.
Drain and dispose of front differential oil.
Replace (1) screw plug.
Parts: Plug

Tighten the screw plug (1) with the special tool 2 414 636.

TIGHTENING TORQUES SPECIFICATION

Screw plug to front axle transmission
M22 Replace screw plug with O-ring.	Tightening torque	60 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

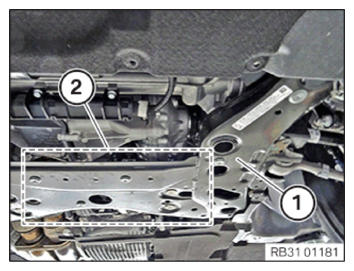

After draining the (1) front axle transmission oil, thoroughly clean the front axle support in the area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release oil drain plug (1) with special tool 2 414 636.

Courtesy of BMW OF NORTH AMERICA, INC.

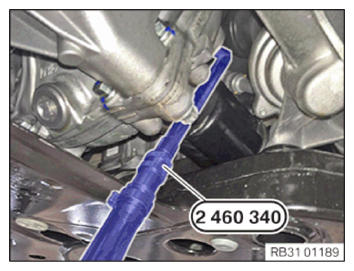

Fill the front axle transmission oil with the special tool 2 460 340 into the front axle transmission oil.

TECHNICAL DATA SPECIFICATION

Front axle transmission oil
Front axle transmission capacity	450 ml

Courtesy of BMW OF NORTH AMERICA, INC.

Replace (1) screw plug.
Parts: Plug

Tighten the oil drain plug (1) with the special tool 2 414 636 .

TIGHTENING TORQUES SPECIFICATION

Screw plug to front axle transmission
M22 Replace screw plug with O-ring.	Tightening torque	60 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version B: Topping up/checking front axle transmission oil

Use a standard tool (1) for releasing and tightening the oil filler plug.

Courtesy of BMW OF NORTH AMERICA, INC.

Standard tool: Pivoting extension 1/2 inch

Swivel extension 1/2 inch

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel extension 1/2 inch
Release the oil filler plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

Check front axle differential oil level.

Result

» The front axle differential oil level is below the lower edge of the opening for the screw plug.

Measure

Top up the front axle transmission oil.

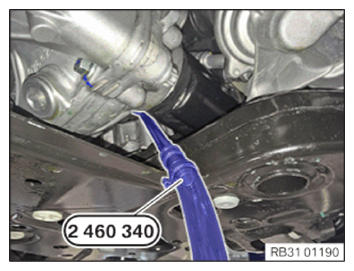

Fill front axle transmission oil with the special tool 2 460 340 up to the lower edge of the opening for the screw plug.

TECHNICAL DATA SPECIFICATION

Front axle transmission oil: Filling capacity overview (all)
Front axle transmission 168AL	450 ml
Front axle transmission (not 168AL)	600 ml

Courtesy of BMW OF NORTH AMERICA, INC.

Replace (1) screw plug.
Parts: Plug
Tighten the oil filler plug (1).

TIGHTENING TORQUES SPECIFICATION

Screw plug to front axle transmission
M22 Replace screw plug with O-ring.	Tightening torque	60 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
