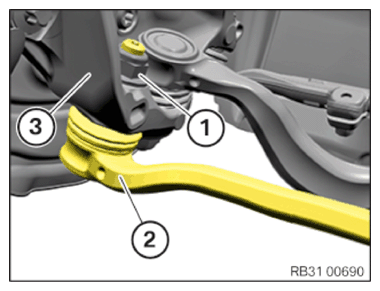

Secure the wishbone at the swivel bearing

Tighten nut (1).

Counter-hold at the Torx socket.

TIGHTENING TORQUES SPECIFICATION

Wishbone to swivel bearing
M16 Replace nut.	Joining torque	100 Nm
M16 Replace nut.	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

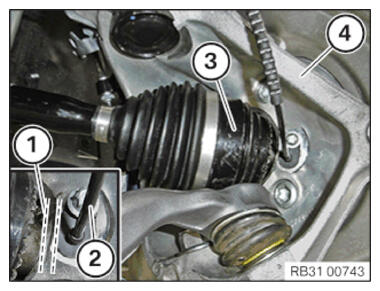

Make sure there is sufficient distance (1) between the wheel speed sensor (2) and the output shaft (3).
Position output shaft (3) on the swivel bearing (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the cable for the wheel speed sensor (2).
NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

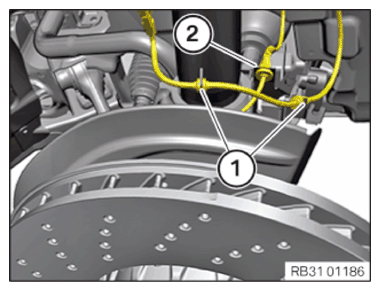

Clip the cable for the Dynamic Damping Control into the holders (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

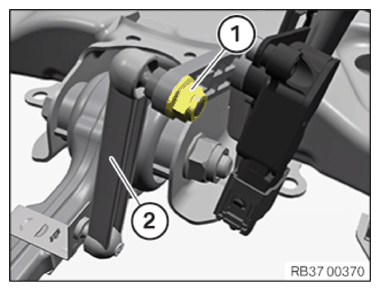

Position connecting rod (2) at the ride height sensor.
Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Jointed rod to ride height sensor
M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
