Remove left and right output shaft
NOTE:
Perform the steps on the right and left side.
Remove output shaft
Remove output shaft
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

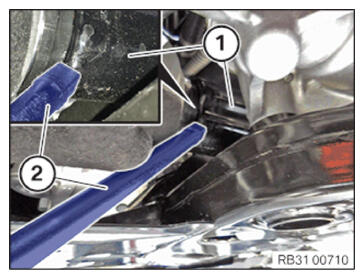

- Position the aluminum drift (2) on the output shaft (1).
- Knock out the output shaft (1) out of the front axle transmission or the bearing bracket with the aluminum mandrel (2).

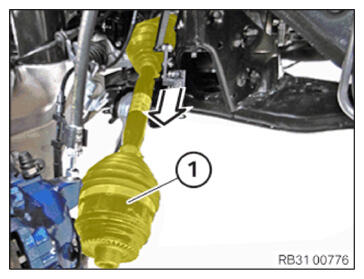

- Guide out the output shaft (1) in the arrow direction and remove.
