Releasing and removing front axle support

Disassemble the front axle support

WARNING: Heavy component falling down or tipping.
Danger! Immobilization period-threatening injuries!

Before lowering or removing the front axle: Securing engine to the installation position.
For additional information see: MOVING THE ENGINE TO THE INSTALLATION POSITION .

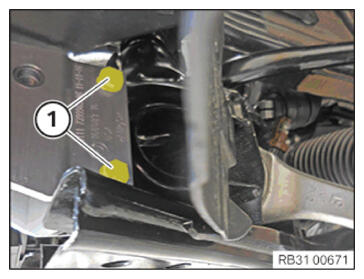

Partially releasing left and right crash levers

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

NOTE: Perform the steps on the right and left side.

Courtesy of BMW OF NORTH AMERICA, INC.

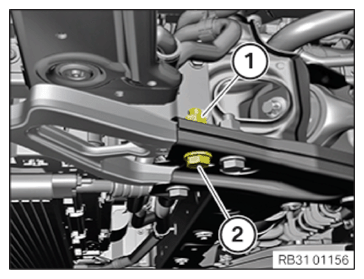

Releasing the adapter for the front axle support from the front axle support on the right and left

NOTE: Perform the steps on the right and left side.

Courtesy of BMW OF NORTH AMERICA, INC.

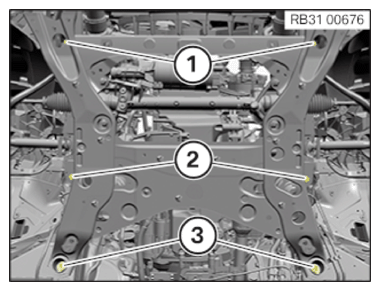

Fig 1: Front Axle Support Screws Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Completely removing the front axle support

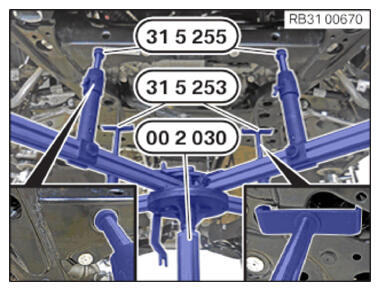

Carefully lower and remove the front axle support with the universal jack 0 490 133 (00 2 030) .

Courtesy of BMW OF NORTH AMERICA, INC.
