Installing the front left bottom wheel arch cover
Installing the front bottom wheel arch cover

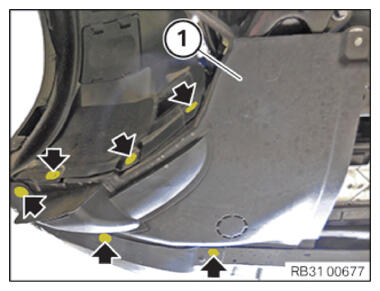

- Guide the wheel arch cover (1) in.
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) |
| Thermoplastic hexagon screw |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installing the front bottom wheel arch cover
- Guide the wheel arch cover (1) in.
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) |
| Thermoplastic hexagon screw |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
