Installing right sealing frame

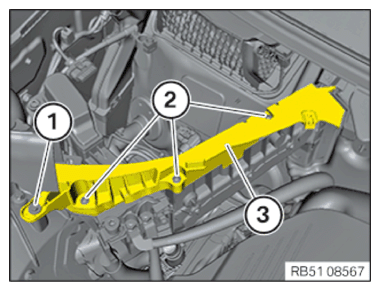

Feed in the sealing frame (3).
Tighten down screw (1).
Tighten the screws (2).

G16027012

Courtesy of BMW OF NORTH AMERICA, INC.
