Installing front-end strut on left and right

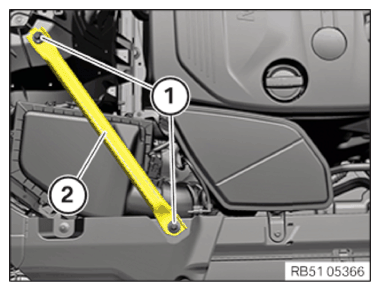

Install the left front-end strut
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
- Install the front-end strut (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Front-end strut | ||
|---|---|---|
| Screw | Tightening torque | 56 Nm |

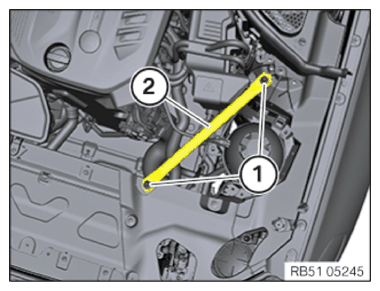

Install the right front-end strut
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
- Install the front-end strut (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Front-end strut | ||
|---|---|---|
| Screw | Tightening torque | 56 Nm |
