Install the wiring harness
NOTE:
The following step(s) must be performed if the specified component(s) is/are installed.

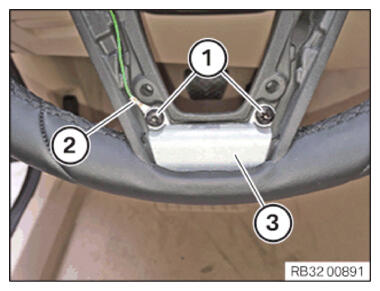

- Position (3) the balance weight.
- Position the (2) grounding cable.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Balance weight/vibration actuator on steering wheel | ||
|---|---|---|
| Screw | tightening torque | 2.2 Nm |
NOTE:
The following step(s) must be performed if the specified component(s) is/are installed.

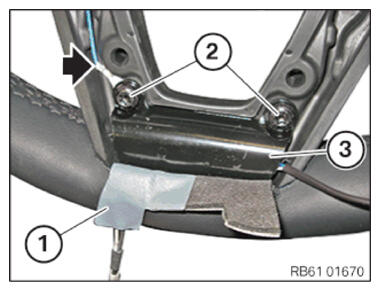

- Position the (3) vibration actuator.
- Position the grounding cable (arrow).
- Tighten the screws (2).TIGHTENING TORQUES SPECIFICATION

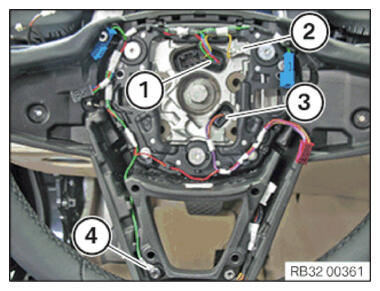

Balance weight/vibration actuator on steering wheel Screw tightening torque 2.2 Nm - Fold closed (1) foam material.
- Connect the plug connection for the vibration actuator.
- Position and thread the wiring harness.
- Connect the (2) grounding cable.
- Position the grounding cable and tighten the screw (4).TIGHTENING TORQUES SPECIFICATION
Balance weight/vibration actuator on steering wheel Screw tightening torque 2.2 Nm - Connect and lock the (1) (3) plug connections.
