Install front cross connection
Install front cross connection

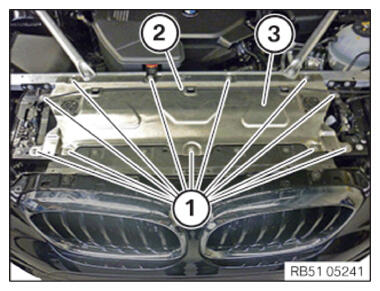

- Feed in cross connection (3).
- Attach the Bowden cable (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Front cross connection |
| Screw |
Tightening torque |
11.8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
