If installed: Removing shift paddle for automatic transmission

Removing shift paddle for automatic transmission

NOTE: Description is for left component only. Procedure on the right side is identical.

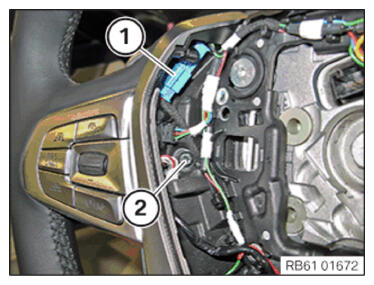

Disconnect connector (1) and remove cable to shift paddle.
Loosen screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

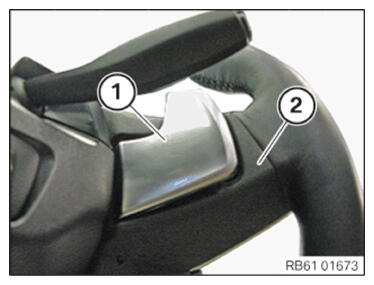

Remove shift paddle (1) from steering wheel (2) and remove associated access line.

Courtesy of BMW OF NORTH AMERICA, INC.
