If installed: Installing the shift paddle for the automatic transmission

Installing the shift paddle for the automatic transmission

NOTE: Description is for left component only. Procedure on the right side is identical.

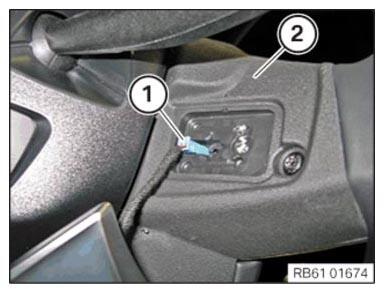

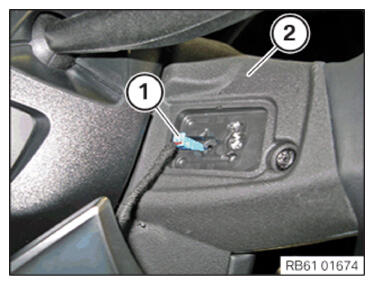

Insert the access line (1) into the rear of the steering wheel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

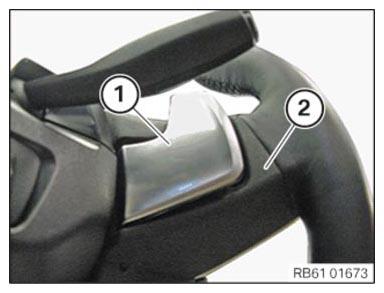

Position the shift paddle (1) on the steering wheel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

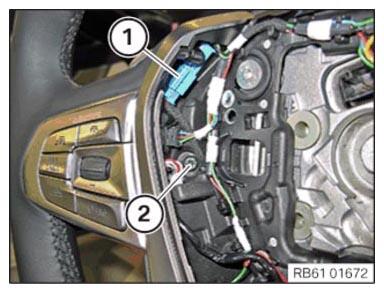

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Shift paddle
Screw TS5x12	Tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
