Fasten acoustic cover on the oil pan

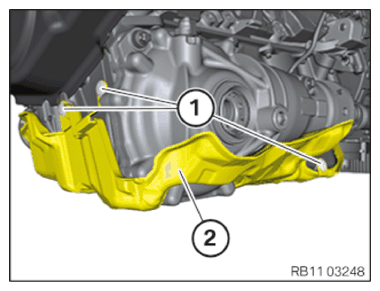

• Position the acoustic cover (2).
• Secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

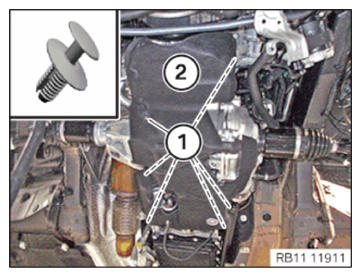

• Position the acoustic cover (2) on the oil sump.
• Secure all expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

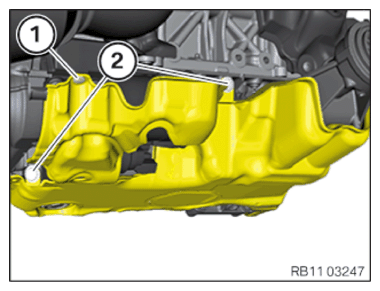

• Fasten all expanding rivets (2) and the christmas tree clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
