Attach the right and left tension struts on the swivel bearing

NOTE: Perform the steps on the right and left side.

Securing tension strut on swivel bearing

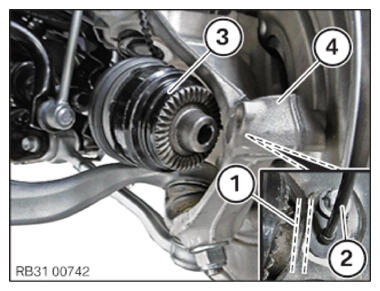

Make sure there is sufficient distance (1) between the wheel speed sensor (2) and the output shaft (3).
Turn swivel bearing (4) outwards.
Place the output shaft (3) in the driving direction to the side.

Courtesy of BMW OF NORTH AMERICA, INC.

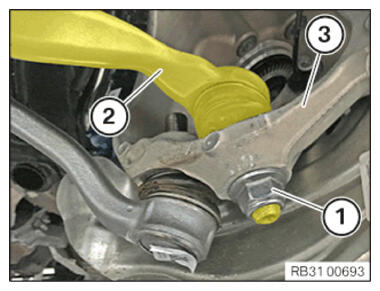

Position tension strut (2) on swivel bearing (3).
Replace nut (1).
Parts: Nut
Tighten nut (1).
NOTE: Counter-hold at the Torx socket.

TIGHTENING TORQUES SPECIFICATION

Tension strut to swivel bearing
M16 Replace nut.	Joining torque	100 Nm
M16 Replace nut.	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.
