Removing trim from the water channel
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing trim from the water channel

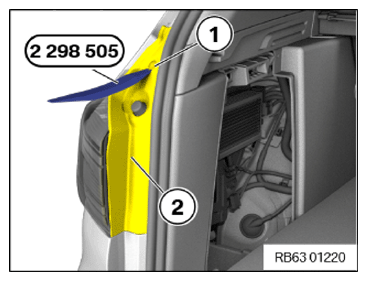

- Unclip the clip (1) with the special tool 2 298 505 .
- Remove the trim (2) upward.
