Removing the trim panels of the luggage compartment capping, left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the luggage compartment trim panel

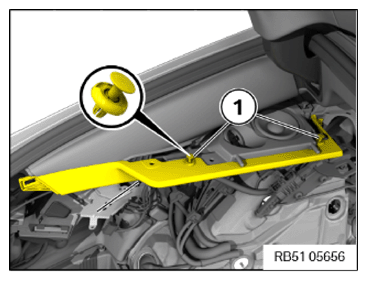

- Loosen the expanding rivet (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

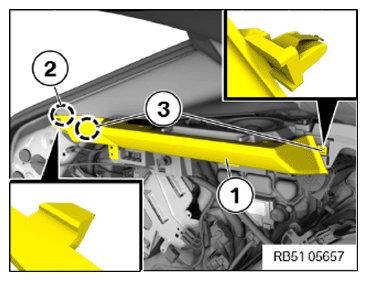

- Release the trim panel of the luggage compartment (1) from the detent (2) and the clamps (3) and remove in an inward direction.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
