Removing right rear reflector
NOTE:
Description is for left component only. Procedure on the right side is identical.

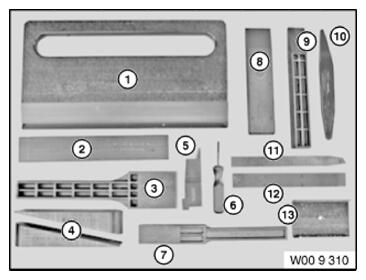

- Get the set of special tools 0 493 752 (00 9 329) ready.
NOTE:
RISK OF DAMAGE
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
- Place special tool directly beside the mounting clip.
- Continue unclipping the part without using the tool if possible.

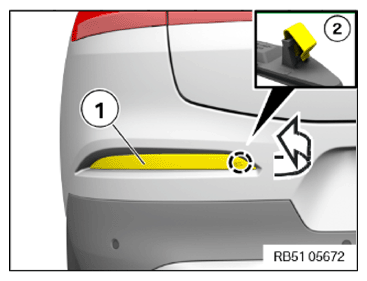

- Release rear reflector (1) with suitable tool at clamp (2).
- Remove rear reflector (1) in arrow direction.
