Removing left rear reflector

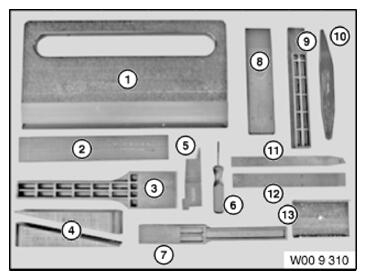

Get the set of special tools 0 493 752 (00 9 329) ready.

G16028049

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Bending of plastic components.
Application of too much force can lead to bending of plastic components.

Place special tool directly beside the mounting clip.
Continue unclipping the part without using the tool if possible.

G16028050

Courtesy of BMW OF NORTH AMERICA, INC.

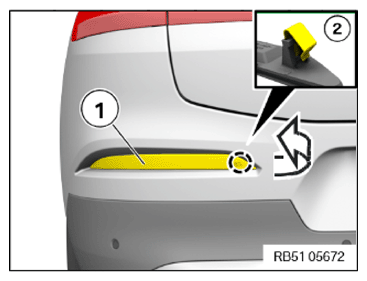

Release rear reflector (1) with suitable tool at clamp (2).
Remove rear reflector (1) in arrow direction.
Unlock and disconnect the plug connection (2) on the rear reflector (1).

G16028051

Courtesy of BMW OF NORTH AMERICA, INC.
