Remove the heat shield at the cylinder head
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.

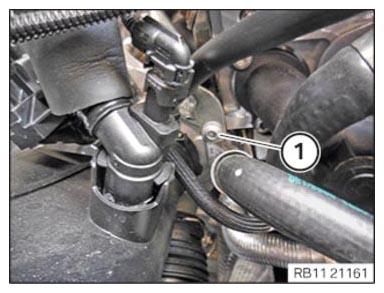

- Version without Real Driving Emissions 2 (-SA1DZ):
Loosen screw (1).

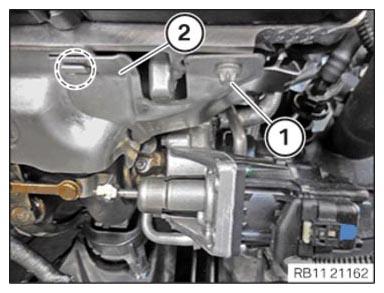

- Version without Real Driving Emissions 2 (-SA1DZ):
Loosen screw (1).
Guide out the heat shield (2) out of the marked area and remove.

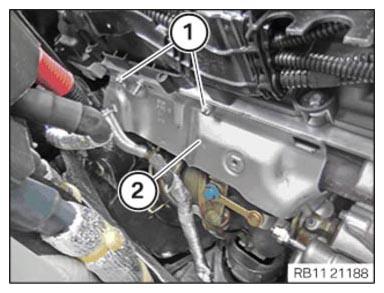

- Loosen screws (1).
- Feed out and remove the heat shield (2).
