Remove front ornamental grille
Remove front ornamental grille
Precondition
Engine compartment lid is open.

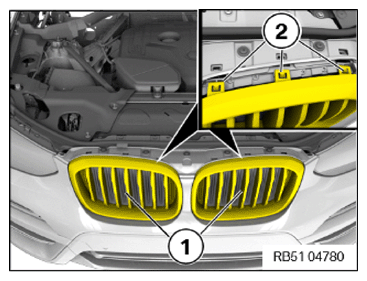

- Undo front ornamental grille (1) out of latch mechanisms (2).
- Release front radiator grill (1) from remaining detents to front and remove.
Remove front ornamental grille
Precondition
Engine compartment lid is open.

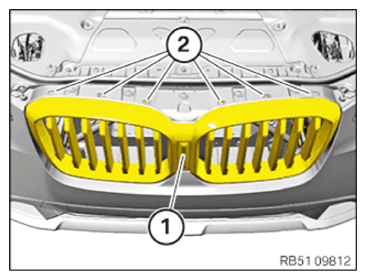

- Release the front ornamental grille (1) at the detents (2).
- Release front radiator grill (1) from remaining detents to front and remove.
