Releasing the service opening in sound insulation on top of engine
Releasing the service opening in sound insulation on top of engine

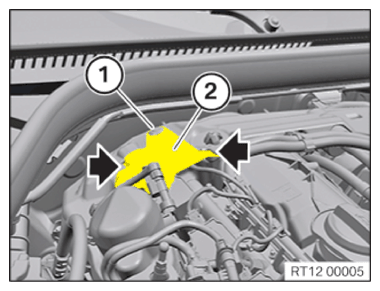

Loosen service opening (2) in marked areas (arrows) and turn to one side via the pivot point (1).
Courtesy of BMW OF NORTH AMERICA, INC.
