Mounting mirror triangle cover

Check

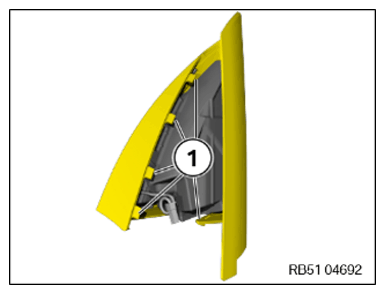

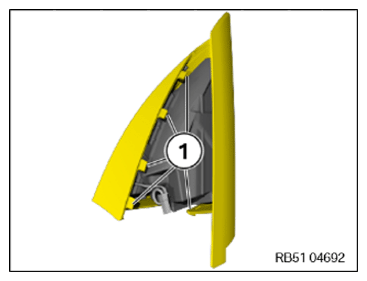

• Check detents (1) of mirror triangle cover for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detents (1) of the mirror triangle cover are damaged.

Measure

• Replace mirror triangle cover.

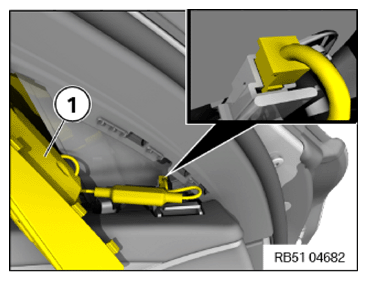

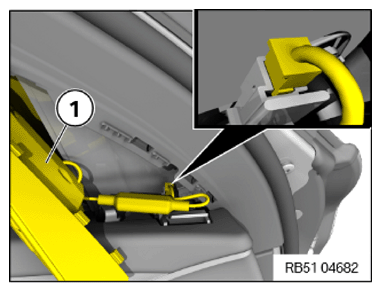

• Connect and lock the connector of the mirror triangle cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

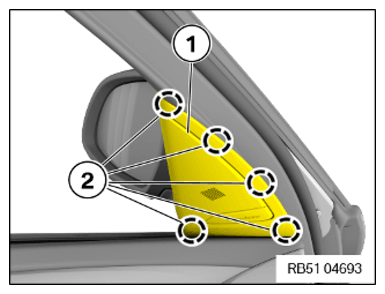

• Clip mirror triangle cover (1) into detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.
