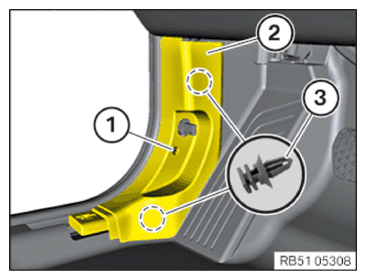

Installing the side trim panel in the footwell at the A-pillar, to the left and right
- Check the clips (3) for damage and replace if necessary.
- Position the side trim panel (2) and engage it in the clips (3).
- Make sure that the side trim panel (2) is correctly fitted against edge protection.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| A-pillar footwell side trim panel | ||
|---|---|---|
| screw | Tightening torque | 2.5 Nm |

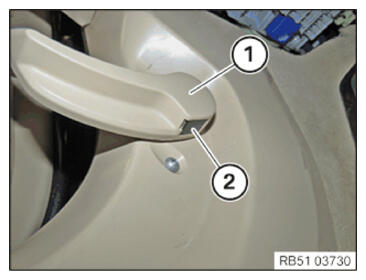

- Install hood release lever (1).
- Pull the hood release lever (1) to the rear.
- Install the locking mechanism (2).

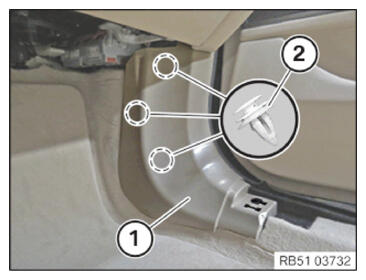

Installing side trim panel in footwell on right A-pillar
- Check the clips (2) for damage and replace if necessary.
- Position the side trim panel (1) and engage it in the clips (2).
- Make sure that the side trim panel (1) is correctly fitted against edge protection.
