Installing the covers for the interior rearview mirror

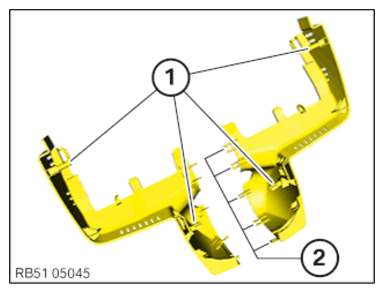

• Check detents (1) and (2) for damage, replace the covers if necessary.

  The detents (1) and (2) must not be damaged or missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

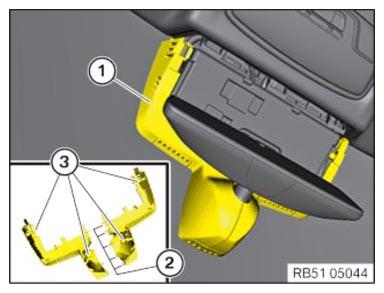

• Guide in cover (1) on the left and right and engage on detents (2) and (3).

Courtesy of BMW OF NORTH AMERICA, INC.

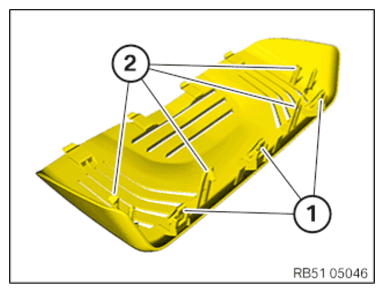

• Check clamps (1) and detents (2) for damage, replace if necessary.

  The clamps (1) and detents (2) must not be damaged or missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

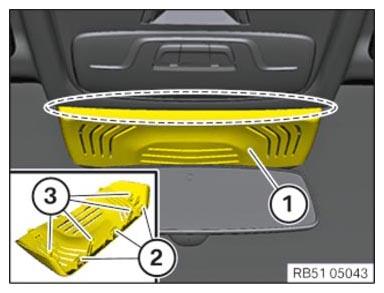

• Guide cover (1) into the front guides and engage on the snap-in lugs (3) and the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the covers for the interior mirror (version B)

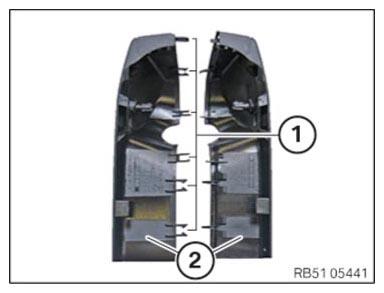

• Check the detents (1) on the covers (2) for damage, if necessary, replace the covers (2).

  The covers (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

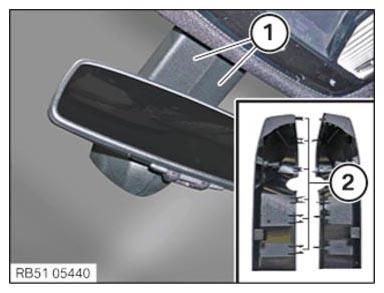

• Position the covers (1) correctly onto the mirror and lock it at the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.
