Installing right rear reflector
NOTE:
Description is for left component only. Procedure on the right side is identical.
Check

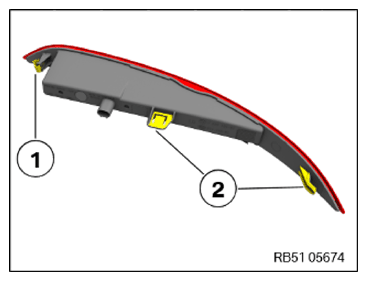

- Check clamp (1) and guides (2) for damage.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Result
» Clamp (1) or guides (2) are damaged.
Measure

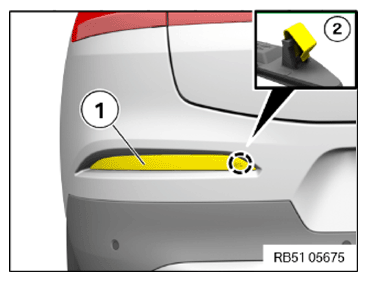

- Position rear reflector (1) in bumper, and lock with clamp (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
