Installing left and right side trim
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the side trim

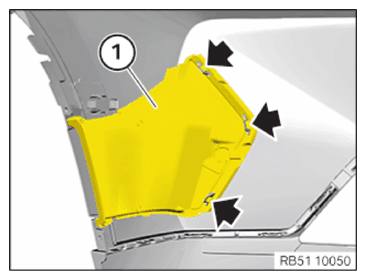

- Install the trim (1) and engage it at the detents (arrows).

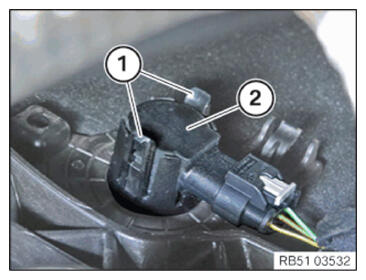

- Install the ultrasonic sensor (2) and snap it in at the detents (1).

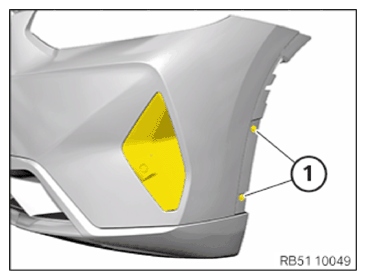

- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Air duct to bumper cover | ||
|---|---|---|
| screw | Tightening torque | 3 Nm |
