Installing both bottom D-pillar trim panels

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the bottom D-pillar trim panel

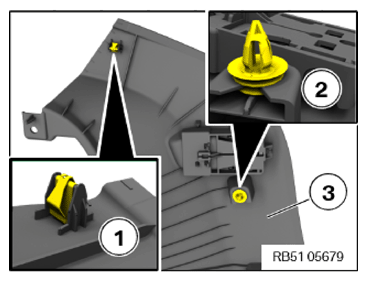

Check the clamp (1) and clip (2) on the D-pillar trim panel (3) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

If installed: Fasten the Bowden cable for the backrest remote unlocking

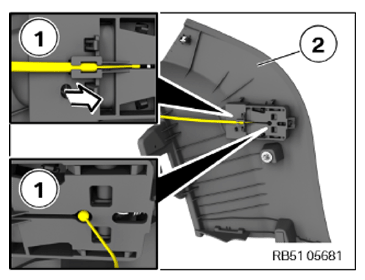

Attach the Bowden cable (1) on the bottom D-pillar trim panel (2).
Lock the Bowden cable (1) on the bottom D-pillar trim panel (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

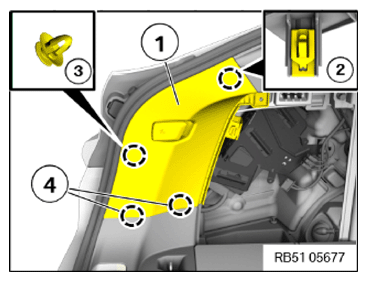

Feed in the D-pillar trim panel (1) under the sealing lip of the tailgate seal.
Position the bottom D-pillar trim panel (1) in the guides (4) and lock in place with the clip (3) and clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

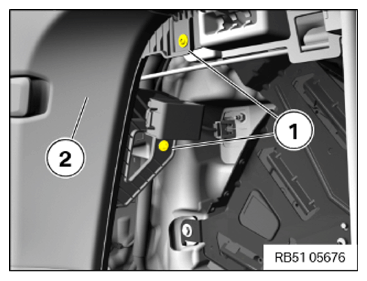

Tighten the screws (1) on the bottom D-pillar trim panel (2).

TIGHTENING TORQUES SPECIFICATION

Bottom D-pillar trim panel to body
Thermoplastic oval-head screw	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
