Install right footwell trim
Install right footwell trim
Connect respective connectors and lock.

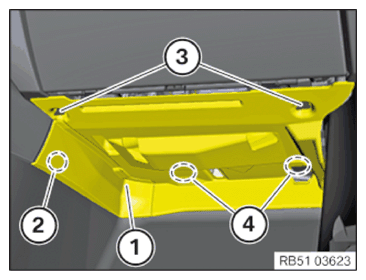

Hook right footwell trim (1) into the guides (4) and fold it upwards.
Clip in the right footwell trim (1) in the area (2) into the center console.
Correctly insert locks (3) and turn them 90°.
