Install left rear reflector

Check

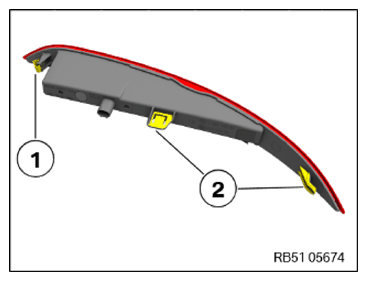

• Check clamp (1) and guides (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Clamp (1) or guides (2) are damaged.

Measure

• Replace rear reflector.

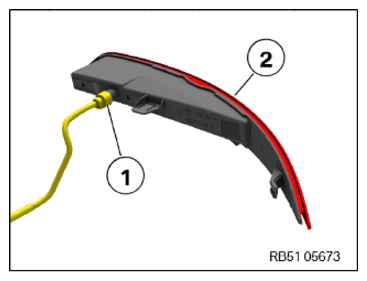

• Connect connector (1) at rear reflector (2) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

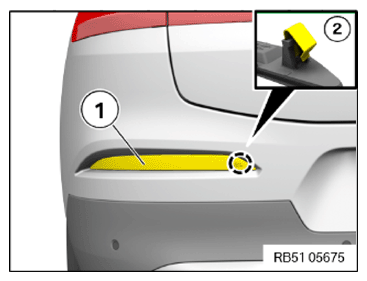

• Position rear reflector (1) in bumper, and lock with clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.
