Install charge air line

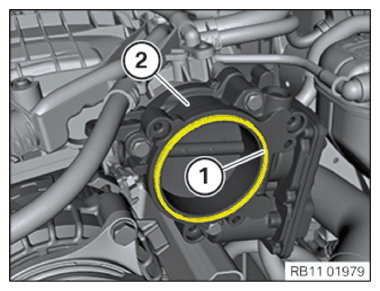

Make sure that gasket (1) is installed correctly on throttle body.

Courtesy of BMW OF NORTH AMERICA, INC.

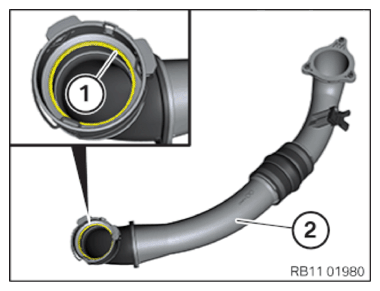

Make sure that gasket (1) is installed correctly on charge air duct (2).
Check gasket (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

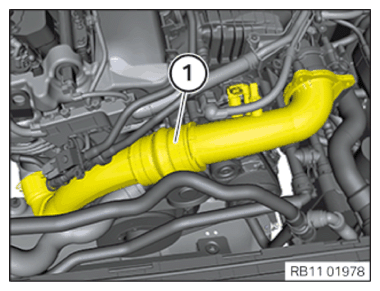

Install charge air duct (1) from above.

Courtesy of BMW OF NORTH AMERICA, INC.

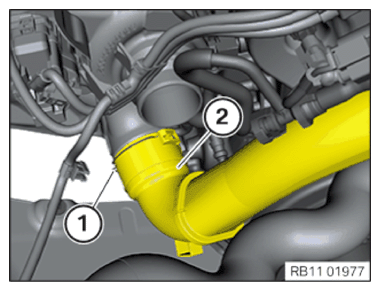

Lock clamp (1).

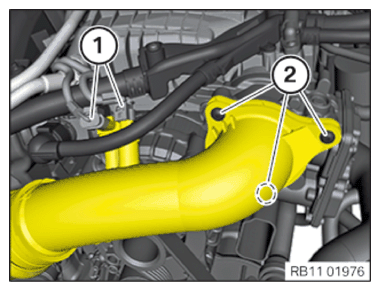

Attach charge air duct (2) to exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Charge air duct to throttle body
M6x30	Tightening torque	8 Nm
