Install air duct
- Install the air duct (3) and feed in on the lower part.
- Mount the expanding rivets (2).
- Clip in the cover (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
NOTE:
Description is for left component only. Procedure on the right side is identical.

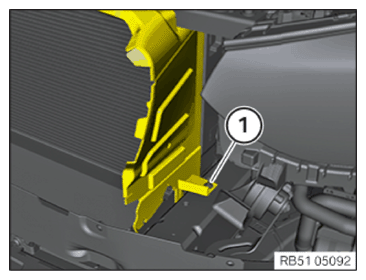

- Install the expanding rivet (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
