Fasten charge air line to the throttle body

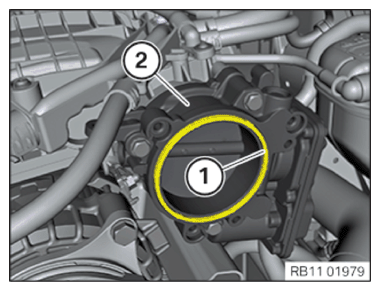

• Replace the gasket (1) on the throttle body (2).

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

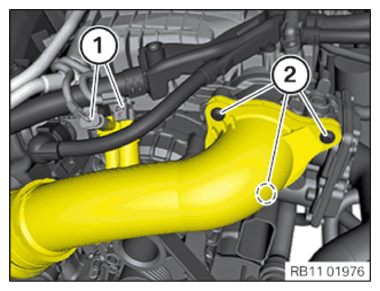

• Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Charge air duct to throttle body
M6x30	Tightening torque	8 Nm

• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.
