Blocking the camshafts
Check
- Check whether the marks (1) on the intake and exhaust camshafts can be read from above.
Result
» Marks (1) cannot be read from the top.
Measure
- Turn the camshafts to the correct position or readjust the valve timing.
Check
- Check whether the center of the three flattened areas (1) on both camshafts points upwards. The special tool 2 358 122 can also be mounted when the camshafts are twisted by 180° (central flattened area points downwards).
Result
» The center of the three flattened areas (1) does not point upwards.
Measure
- Turn the camshafts to the correct position such that the center of the three flattened areas (1) on both camshafts points upwards.
- The cam on the exhaust camshaft on the first cylinder points obliquely inwards to the right.
- The cam on the intake camshaft on the first cylinder points obliquely to the left.
- Keep the set of special tools 2 358 122
ready:

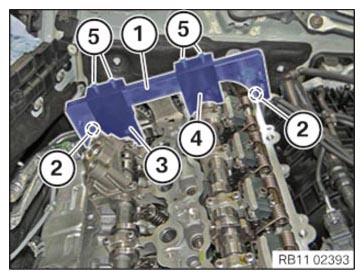

Number Description 1 Basic carrier 2 Basic carrier screws on cylinder head 3 Gauge to fix exhaust camshaft 4 Gauge to fix intake camshaft 5 Screw gauge on basic carrier - Secure the basic carrier (1) of the special tool 2 358 122 with the screws (2) the cylinder head.
- Position gauge (3) with the recess on the exhaust camshaft and fix with the screws (5) on the basic carrier (1).
- Position gauge (4) with the recess on the intake camshaft and fix with the screws (5) on the basic carrier (1).
NOTE:
If the special tool 2 358 122
cannot be mounted, the valve timing must be readjusted.
