Removing resonator
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to REMOVING RIGHT FRONT-END STRUT .
- Refer to REMOVING INTAKE SILENCER HOUSING .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.

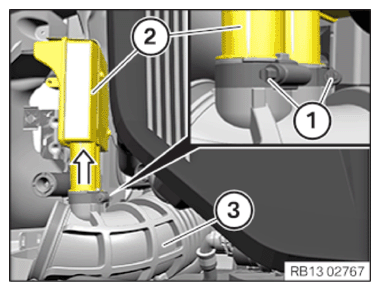

- Release circlips (1).
- Feed out the resonator (2) from the clean air pipe (3) in the arrow direction and remove it.
- Guide out and resonator (3) with the upper clean air tube (2) and remove.
