Replace turbocharger

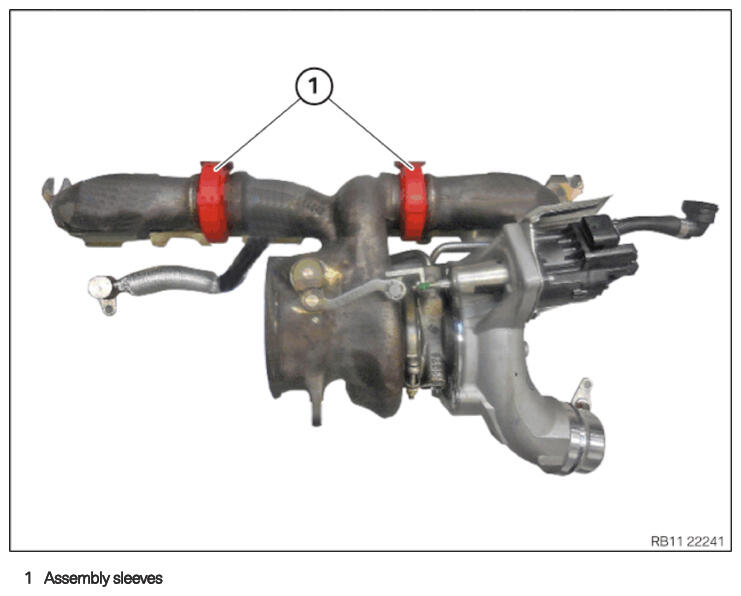

Turbocharger with assembly sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

NOTE: RISK OF DAMAGE
Damage of the electric wastegate valve controller.
Excessive force when removing and installing a jammed turbocharger may damage the electric wastegate valve controller.

Do not pull on the electrical wastegate valve controller or on the coupling rod.
Apply force only at the turbine housing and exhaust manifold.
Do not pull on the compressor housing.

When replacing the turbocharger: Remounting the oil feed line, coolant feed line and coolant return line

NOTE: RISK OF DAMAGE
Dry running due to insufficient initial filling of the turbocharger.
Damage to the turbocharger.

Be sure to do the initial filling when replacing the turbocharger.
Fill the turbocharger with the matching additive (see applicable BMW parts catalogue).

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Loosen screw (1).
Feed the coolant return line (2) out and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed out and remove oil feed line (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Twist the coolant feed line (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Guide out the coolant feed line (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Using the special tool 0 496 714 (00 9 030) , replace the sealing rings (1) on the coolant feed line (2).
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Using the special tool 0 496 714 (00 9 030) , replace the sealing rings (1) on the coolant return line (3).
Parts: Sealing ring
Check the sealing ring (2) on the coolant return line (3) for damage and if required, replace the coolant return line (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the sealing rings (1) and (2) at the oil feed line (3) for the turbocharger using the special tool 0 496 714 (00 9 030) .
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the coolant feed line (1) and install.

Courtesy of BMW OF NORTH AMERICA, INC.
Twist the coolant feed line (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Initial filling with the additive when replacing the turbocharger

NOTE: RISK OF DAMAGE
Dry running due to insufficient initial filling of the turbocharger.
Damage to the turbocharger.

Be sure to do the initial filling when replacing the turbocharger.
Fill the turbocharger with the matching additive (see applicable BMW parts catalogue).

Courtesy of BMW OF NORTH AMERICA, INC.

Fill turbocharger additive (1) into the bore (2) of the oil feed line.

CONSUMABLE SPECIFICATION

Turbocharger additive, gasoline MSP

17 ml, Tube

83192457276

Insert and install the oil supply line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and install the coolant return line (2).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Coolant return line/oil feed line to turbocharger
M6 x 12	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Check screw-in depth (A) of upper stud bolts (1).

TECHNICAL DATA SPECIFICATION

Screw-in depth of upper stud bolts on cylinder head
Dimension A	30 mm

If necessary, screw in or unscrew the stud bolts further.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

Clean the sealing surfaces (1) on the cylinder head using special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the seal (1).
Parts: Seal
Feed in the seal (1) in the marked area and install.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

Clean the sealing surfaces (1) on the turbocharger using special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

Insert and install the turbocharger (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the shifting strip (1).
Install the sliding rail (1) in such a way that the part number is visible.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace nuts (1) to (7).
Parts: Nuts
Tighten the nuts in the sequence (1) to (7).

TIGHTENING TORQUES SPECIFICATION

Exhaust manifold to cylinder head
Flange nut M7	Replace flange nuts 1. Joining torque	10 Nm
	2. Joining torque	10 Nm
	3. Joining torque	16 Nm
	4. Joining torque	16 Nm
	5. Joining torque	16 Nm

Fig 1: Exhaust Manifold Nuts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and release the assembly sleeves (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out the assembly sleeves (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the sealing rings (1) on the coolant feed line (2) for the turbocharger using the special tool 0 496 714 (00 9 030) .
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the coolant feed line for the turbocharger (3).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Coolant feed line to crankcase
M6X12	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Coolant feed line to crankcase
M6X12	tightening torque	8 Nm

Replace screws (1) and (2).
Parts: Screws
Feed in and install support (3).
Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Turbocharger support to crankcase
M8 x 20 Replace screws.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Turbocharger to support
M8 x 25 Replace screw.	Tightening torque	19 Nm

Replace the sealing rings (1) at the oil feed line (2) for the turbocharger using the special tool 0 496 714 (00 9 030) .
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the oil feed line (2) for the turbocharger.
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Oil feed line for turbocharger to crankcase
M6 x 12 Replace sealing ring.	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) on the coolant return line (2).

TIGHTENING TORQUES SPECIFICATION

Coolant return line holder to crankcase
M6X12	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the coolant return line (1) to the coolant pump (2) for the turbocharger.
The coolant return line (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the heat shield (2).
Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Heat shield to cylinder head
M8X12 Replace screws.	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the heat shield (3).
Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Heat shield to cylinder head
M8X12 Replace screws.	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the screw (2).
Parts: Screw
Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Heat shield to trim strip
M6X16 Replace screw.	Tightening torque	8 Nm
