Removing the cover of the front bumper cover
Preliminary work
- Refer to REMOVING FRONT ORNAMENTAL GRILLE .
- Refer to PARTIALLY REMOVING THE LEFT AND FRONT RIGHT WHEEL ARCH TRIM .
- Refer to PARTIALLY REMOVING THE FRONT SECTIONS OF BOTH WHEEL ARCH COVERS AT THE FRONT .
- Refer to REMOVING FRONT BUMPER COVER .
- Refer to REMOVING THE ORNAMENTAL GRILLE OF THE FRONT BUMPER COVER .
NOTE:
Perform the steps on the right and left side.
- Loosen screw (1).
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
- Unlock the detents (1).
- Remove the ultrasonic sensor (2) and let it hang on the wiring harness.

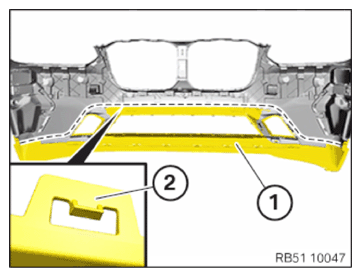

- Release the cover (1) at the detents (2) along the dotted line and remove it.
