Installing rear wheel speed sensor

• Clean the bore for the wheel speed sensor and grease it with lubricating grease (see applicable BMW parts catalogue).
  CONSUMABLE SPECIFICATION



  Lubricating grease Staburags NBU 12K

  100 g, Tube

  83 23 9 407 810

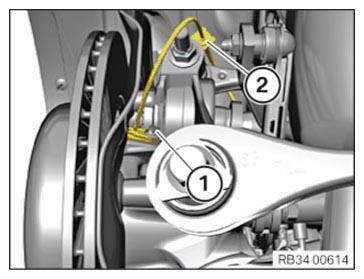

• Install rear wheel speed sensor.
• Replace the screw (2).

  Parts:  Screw

• Position and tighten the screw (2).
  TIGHTENING TORQUES SPECIFICATIONS



  Rear wheel speed sensor on wheel carrier
  Replace screw.	tightening torque	12 Nm

• Hook cable of the wheel speed sensor into the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

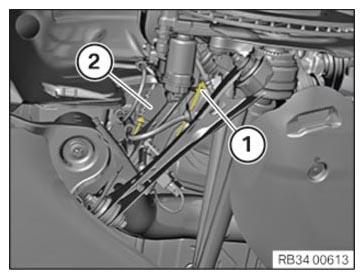

• Hook the cable of the wheel speed sensor into the holder (1).
• Connect the connector and close cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR LEFT WHEEL .
