34 52 Abs Control Module, Electronic Parking Brake Actuator, Stability Control System
>>
34 52 525 Replacing one front wheel speed sensor (after vehicle diagnosis)
>>
Removing the front wheel speed sensor
Removing the front wheel speed sensor
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
Refer to
REMOVING THE FRONT LEFT WHEEL
.

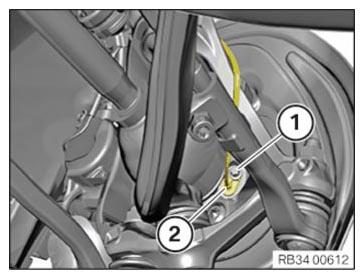

Loosen the screw (1) and remove the wheel speed sensor (2).
Courtesy of BMW OF NORTH AMERICA, INC.

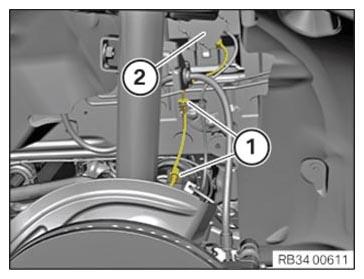

Detach the wheel RPM sensor cable from the holders (1).
Open the housing cover (2) and disconnect the plug connection.
Courtesy of BMW OF NORTH AMERICA, INC.
