Install the optional equipment system (SAS)

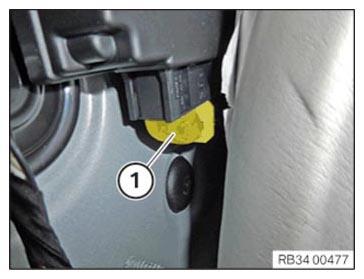

• Connect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

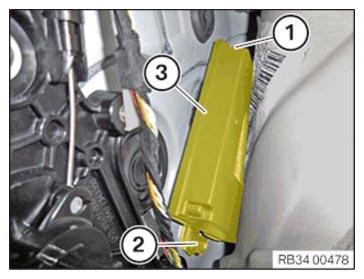

• Feed in the optional equipment system (SAS) (3).
• Replace the plastic nuts (1) and (2).

  Parts:  Plastic nuts

• Install the nuts (1) and (2) and tighten.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
